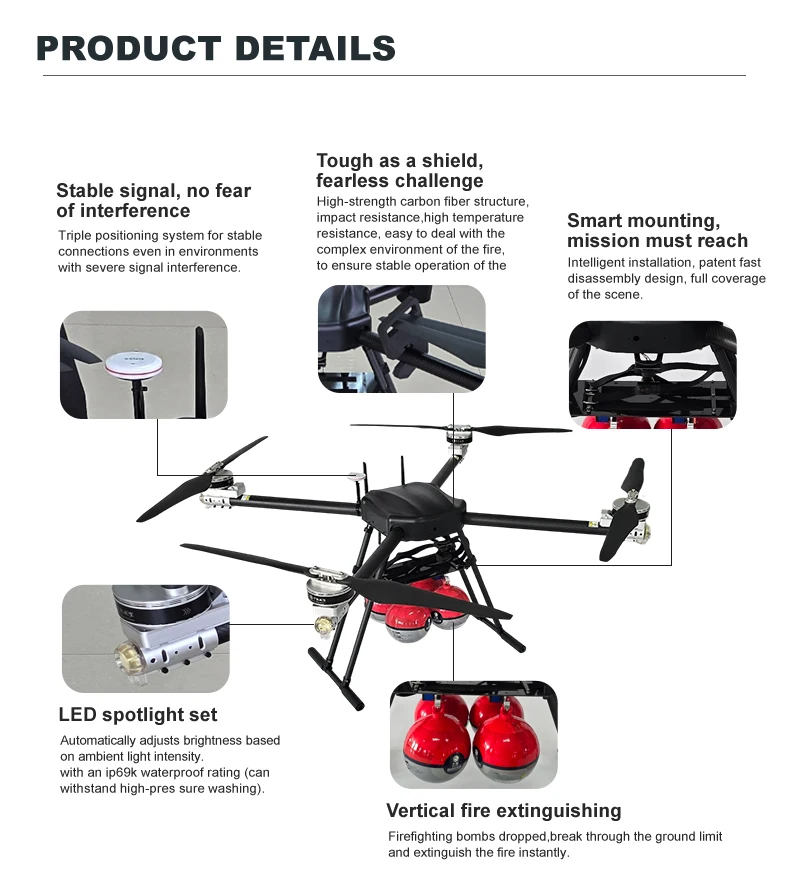

The Fire Extinguishing Drone features a foldable, rugged frame suitable for rapid deployment. It supports both manual and automated control modes, integrating GPS navigation and intelligent path planning. Its high-precision payload system allows the drone to drop fire extinguishing balls and other suppression materials directly over the fire source.
| Specification | Detail |
| Product Name | Fire Extinguishing Drone |
| Drone Type | Fire & Rescue UAV |
| Usage | Firefighting, Emergency Response, Rescue Missions |
| Place of Origin | Zhejiang, China |
| Warranty | 1 Year |
| Core Components | Pump, Motor, Flight Control System, Sensors |
| Weight | 50 kg |
| Diameter | 34 inch |
| Feature | Remote Controlled, Automatic Fire Suppression |
| Sprayer Type | Unmanned Aerial Vehicle (UAV) |
| Lead Time (1–5 sets) | 7 Days |
| Lead Time (6–10 sets) | 15 Days |
| Lead Time (>10 sets) | To be Negotiated |
| Selling Units | Single Item |
| Single Package Size | 110 x 90 x 98 cm |
| Single Gross Weight | 48 kg |
| Keywords | Firefighting Drone, UAV for Fire, Emergency Drone |
| Video Outgoing-Inspection | Not Available |
| Machinery Test Report | Not Available |
| Fire Emergency UAV Capabilities | |
| Functions | Fire Suppression, Emergency Deployment |
| Suitable Environments | Forests, High-Rise Buildings, Disaster Zones |
| Flight Control System | GPS + Manual + Autonomous Pathing |
| Payload Type | Fire Balls, Fire Retardant Modules |
| Navigation Systems | Thermal Imaging, HD Optical Camera |
| Portability & Deployment | Quick Folding for Fast Emergency Use |
| product model | Y120P drone |
| 1. Model | Motorized four-axis eight-propeller |
| 2.Symmetrical motor axis distance | <2000mm |
| 3. Unladen take-off weight | 80KG |
| 4.Maximum load | 70KG |
| 5. Maximum take-off weight | 130 kilograms |
| 6. Flight time | 70 minutes (unloaded), 30 minutes with a load of 50 kilograms |
| 7.Horizontal flight speed | 1-15m/s |
| 8. Hovering accuracy | Horizontal<+_1.0m, Vertical<+1.0m |
| 9. Satellite positioning module | GPS/GLONASS orBDSS/GLONASS dual-mode GPS Beidou satelite (triple |
| 10. Maximum relative flight altitude | ≥1000m |
| 1 1.Maximum tolerable wind speed | 6 level |
| 12.Rainproof perfommance | ≥Medium rain |
| 13. Remote control distance | ≥2 km |
| 14.Operating ambient temperature | -20°C to +60℃C℃ |
| 15.Folded Size | 1000mm*900mm*880mm |
| 16. Maximum unfolding size | 26520mm*1555mm*905mm |
| 17.Maximum tiltable angle positioning mode | 30° |
| 18.Maximum rotational angular velocity. | 120°/s |
| 19.Empty machine weight | 35KG |
| 20.Level of protection | Not less than lP54 |
| 21. Flight altitude | >5000 m (zero altitude) |
| 22.Flight humidity | <90% |
| 23. Flight altitude | >500 m (zero altitude) |
| 24.Flight mode | Manual, automatic |
| 25.Airframe material | Carbon fiber material, light weight, high strength, withcorrosion resistance. |
| 26. Mountable | Fire extinguishing cartridges, water guns, small buckets,throwing mechanisms, etc |
High-Rise Building Fire Response
Forest Fire Management and Aerial Water Deployment
Disaster Area Fire Suppression
Oil Depot and Industrial Area Safety Control
Emergency Firefighting in Remote or Blocked Access Zones
Q: What type of fires can this drone handle?
The drone is designed for Class A, B, and some electrical fires, depending on the extinguishing payload used.
Q: Can the drone be used at night or in low visibility?
Yes, it features thermal imaging and powerful lighting to operate in challenging visibility conditions.
Q: Is training required to operate the drone?
Basic UAV operation training is required. Professional use in firefighting scenarios should follow local aviation and safety regulations.
Q: How does the drone drop the extinguishing payload?
It is equipped with an automated release system for deploying fire extinguishing balls or retardants at targeted fire points.
Q: Can it be used indoors?
It is primarily designed for outdoor and semi-enclosed areas. Indoor use may require controlled testing due to space limitations.
