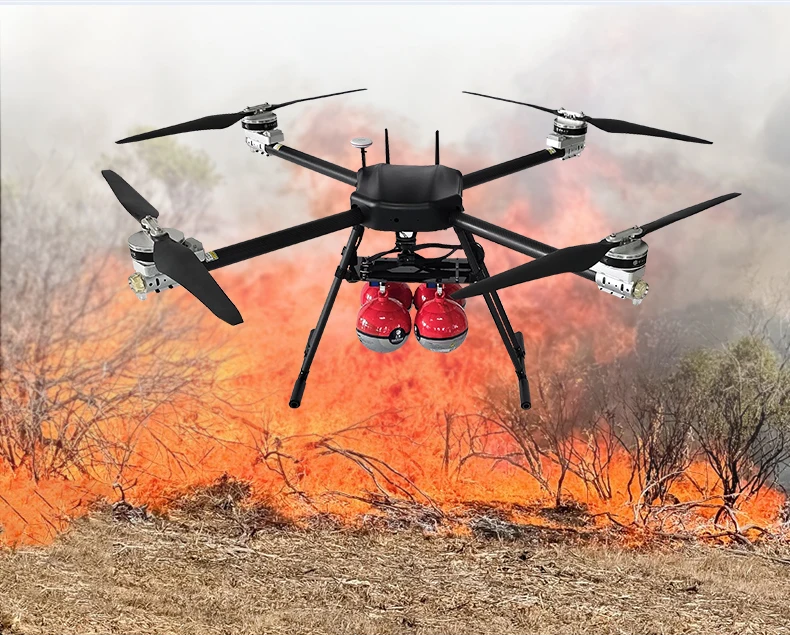

The Deep Forest Firefighting Drone (Model: Y120P) is a long-range heavy-duty gyrocopter UAV designed for delivering firefighting equipment, extinguishing agents, or rescue supplies in extreme forest, mountainous, or hard-to-reach terrains. With a high payload capacity and long endurance, it is a game-changing solution for emergency responders and forestry departments.
Heavy-Duty Gyrocopter Structure: Engineered for stability with eight-propeller power.
Large Payload Capacity: Carries up to 70 kg of fire extinguishing equipment or cargo.
GPS/GLONASS/Beidou Navigation: Precise positioning in forests and rugged terrain.
High Wind and Rain Resistance: Suitable for use in rain and Level 6 wind environments.
Long Flight Duration: Up to 70 minutes unloaded; 30 minutes with 50 kg cargo.
Advanced Control Modes: Operates in manual or autonomous flight control modes.
Carbon Fiber Body: Ensures strength, durability, and corrosion resistance.
Deep Forest Fire Suppression
High-Altitude Firefighting Missions
Remote Area Emergency Supply Delivery
Aerial Drop of Fire Suppression Materials
Search and Rescue Logistics in Forested Zones
Q: What qualifications are needed to operate the drone? For commercial use, you typically need a relevant drone license from local aviation authorities, such as the Civil Aviation Administration of China.
Q: Are there altitude and distance limitations for flight? Yes. Most areas restrict flight altitudes to 120–150 meters and require line-of-sight operation. Sensitive areas may have stricter rules.
Q: How long can the drone fly? Flight time varies: 70 minutes when unloaded and 30 minutes carrying 50 kg. This outperforms standard consumer drones.
Q: How do I choose the right drone? For firefighting, focus on payload capacity, wind resistance, altitude capability, and automatic navigation systems.
Q: Can the drone operate in bad weather? Yes. It is designed to resist Level 6 wind and moderate rain. However, extreme weather should still be avoided unless under expert supervision.
The Deep Forest Firefighting Drone features a four-axis, eight-propeller motorized system. Capable of carrying up to 70 kg of payload, the drone can remain airborne for up to 70 minutes when unloaded, and 30 minutes while loaded with 50 kg. It includes GPS/GLONASS/Beidou satellite navigation and supports manual or automatic flight control modes.

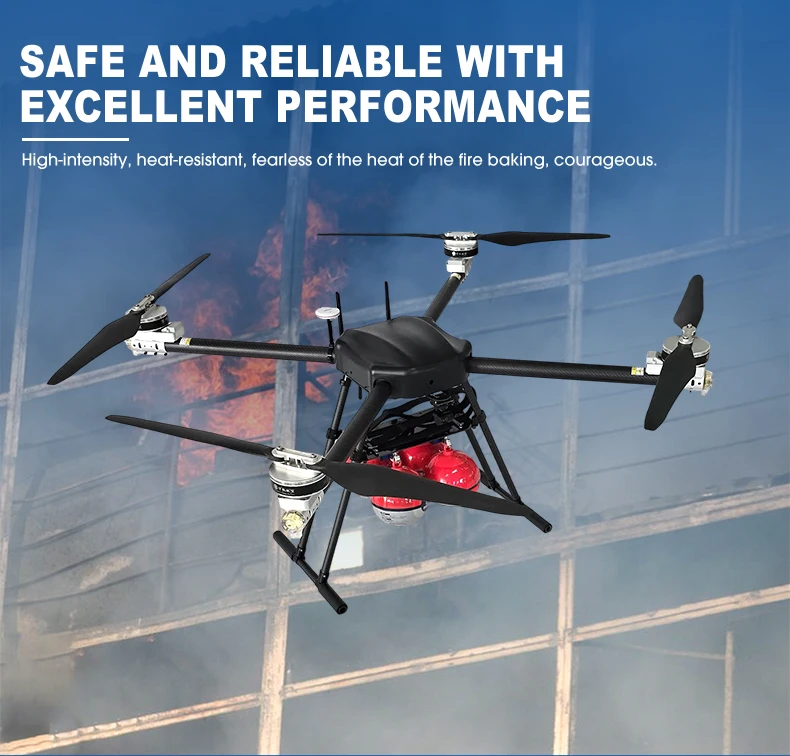

Its carbon fiber frame is corrosion-resistant and rugged enough for operations in remote environments. With medium rainproof performance, high temperature tolerance, and the ability to operate at over 5000 meters elevation, it is an ideal UAV for forest firefighting and cargo delivery missions.
| Specification | Detail |
| Product Name | Deep Forest Firefighting Drone |
| Product Model | Y120P |
| Drone Type | Heavy Duty Cargo Firefighting UAV |
| Motor System | Motorized Four-Axis Eight-Propeller |
| Symmetrical Motor Axis Distance | <2000mm |
| Unladen Take-off Weight | 80 kg |
| Maximum Load | 70 kg |
| Maximum Take-off Weight | 130 kg |
| Flight Time | 70 mins (unloaded), 30 mins (loaded with 50 kg) |
| Horizontal Flight Speed | 1–15 m/s |
| Hovering Accuracy | Horizontal <±1.0 m, Vertical <±1.0 m |
| Satellite Positioning | GPS/GLONASS/Beidou (Triple-mode GPS) |
| Max Relative Flight Altitude | ≥1000 m |
| Max Tolerable Wind Speed | Level 6 |
| Rainproof Performance | Medium Rain ≥ IP54 |

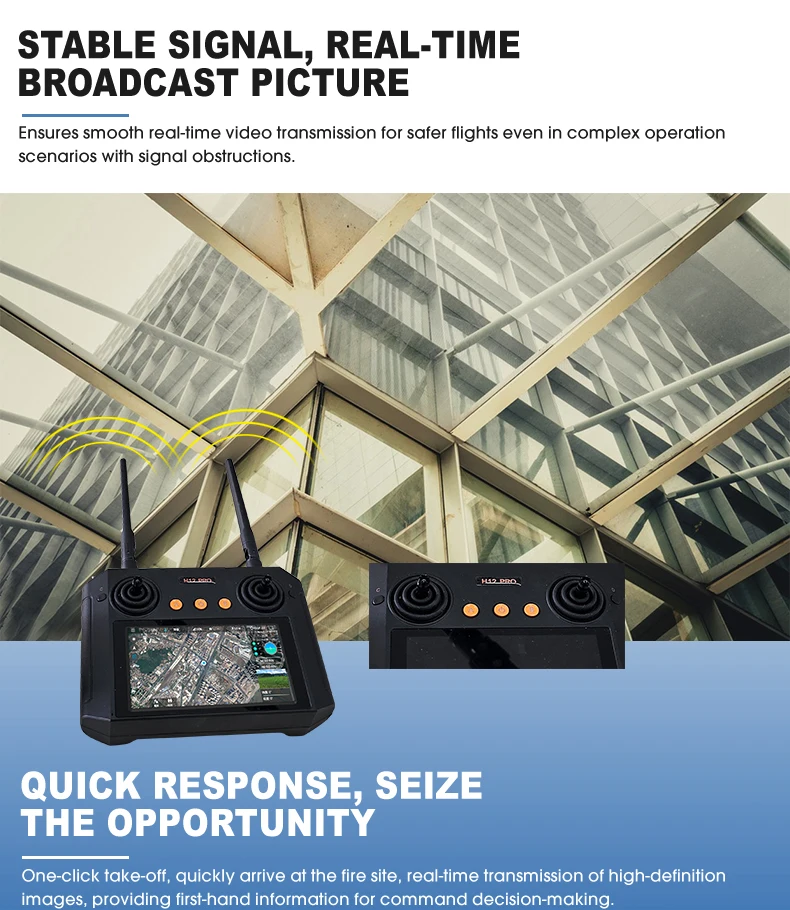

| Remote Control Distance | ≥2 km |
| Operating Temperature Range | -20°C to +60°C |
| Folded Size | 1000mm x 900mm x 880mm |
| Max Unfolding Size | 26520mm x 1555mm x 905mm |
| Max Tiltable Angle (Positioning Mode) | 30° |
| Max Rotational Angular Velocity | 120°/s |
| Empty Machine Weight | 35 kg |
| Protection Level | Not Less Than IP54 |
| Max Flight Altitude | >5000 m |
| Max Operating Humidity | <90% |
| Flight Modes | Manual / Automatic |
| Airframe Material | Carbon Fiber – Lightweight, High Strength, Corrosion Resistant |

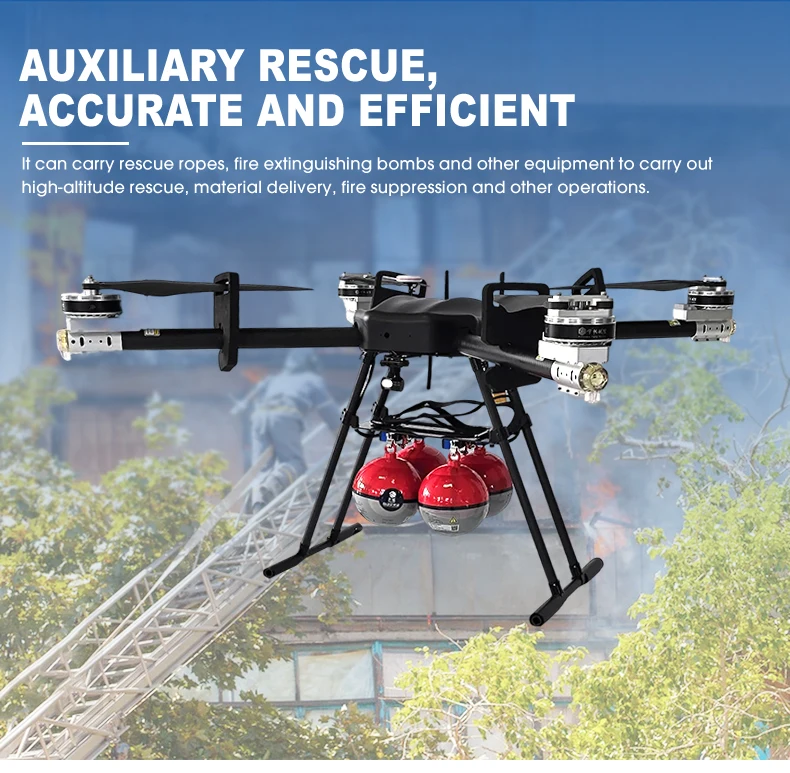

| Mountable Payload | Fire Extinguishing Cartridges, Buckets, Throwing Devices |
| product model | drone |
Q: What qualifications are needed to operate the Y120P drone?
A: For commercial operations, operators typically require a drone pilot license issued by relevant aviation authorities, such as the Civil Aviation Administration of China. For recreational use, licensing requirements may vary, but adherence to local flight regulations is mandatory.
Q: Are there restrictions on drone flight altitude and distance?
A: Yes. Most jurisdictions impose altitude limits, commonly between 120 to 150 meters, and require drones to remain within the visual line of sight. Additional restrictions apply near sensitive areas like airports and military zones.
Q: How long can the Y120P drone fly?
A: The Y120P offers a flight time of up to 70 minutes when unloaded and approximately 30 minutes when carrying a 50 kg payload.
Q: How do I choose a suitable drone for firefighting purposes?
A: Consider factors such as payload capacity, flight endurance, environmental resistance, and compatibility with firefighting equipment. The Y120P excels in these areas, making it a strong candidate for firefighting missions.
Q: Can the Y120P drone operate in adverse weather conditions?
A: Yes. The drone is designed to withstand medium rain and wind speeds up to Level 6. However, operations in extreme weather should be approached with caution and in accordance with safety guidelines.
The Y120P Deep Forest Firefighting Drone stands out as a formidable asset in combating wildfires and conducting emergency operations in challenging terrains. Its combination of heavy-lift capability, advanced navigation, and resilience to harsh conditions makes it an invaluable tool for modern firefighting and disaster response efforts.
