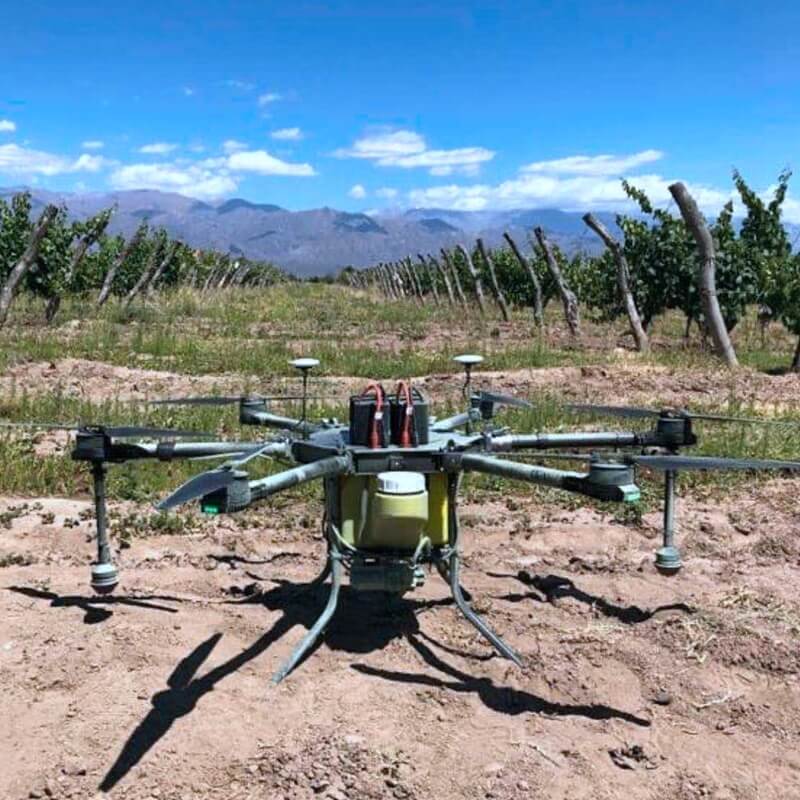

One drone agriculture sprayer with all the options will be put into one Aluminum packing case .The drones are widely applied to spray liquid pesticide and fertilizer on vegetables, fruit trees and crops, achieved good effect. The sprayer drone is the drone made for agriculture use to protect the plants. The sprayer drone is constituted of power system, GPS flight control and spraying system three parts. It uses remote controller or GPS to realize the spraying function, including spraying of liquid pesticides and fertilizers.

  • Function: One Key Takeoff / Landing, Altitude Hold Mode, with G-sensor, With Camera, APP Control, With Remote Control, With LED lights
  • Power Source: Li-Po battery
  • Tank capacity: 15L
  • Spraying width: 5-7m
  • Flying speed: 0-12m/s
  • Feature: High Durability
Description
Technical Data
More Details
Contact Us Now
Description
Place of Origin: Shandong, China
Model Number: JT 10L-606
Material: carbon fiber
Power: LIPO BATTERIES
Type: agriculture use
Function: One Key Takeoff / Landing, Altitude Hold Mode, with G-sensor, With Camera, APP Control, With Remote Control, With LED lights
Power Source: Li-Po battery
Tank capacity: 15L
Spraying width: 5-7m
Flying speed: 0-12m/s
Feature: High Durability
Agriculture drone Type: Agriculture Equipment
Usage: Agricultural Pesticide Spraying Uav
Drone propeller size:  21" Propeller
Radio Control Style: RC Model
Certification: RECH, FCC, ce, ISO 9001
Technical Data
Model
JT 15L-606 sprayer drone
Structure
Foldable umbrella
Frame
6 axles, 6 propellers
Material
Aviation aluminum, carbon fiber
Pesticide tank
10 L
Net weight
13.5 kg
Take off weight
31 kg
Max take off weight
38 kg
Drone size(Spread)
W1.8mxL1.8mxH0.48m
Drone size(Folded
W0.7mxL0.7mxH0.63m
Flying time
10~15min
Flying radius
0~1000m
Flight height
0~30m
Flying speed
0~12m/s
Work temperature
-10~70°C
Work humidity
0~90%
Wind resistance
10m/s
Nozzle
2 pcs centrifugal nozzles
Spraying width
6-7m
Spraying efficiency
7-8 hectares / hour
Spraying flow
2-2.5L/min
Motor
Brushless, IP 65
Propeller
Carbon fiber composite
Flight control
Joyance K++
Remote controller
Joyance VD 32
Battery
6S 17000mah LiPo battery
Battery quantity
2pcs
