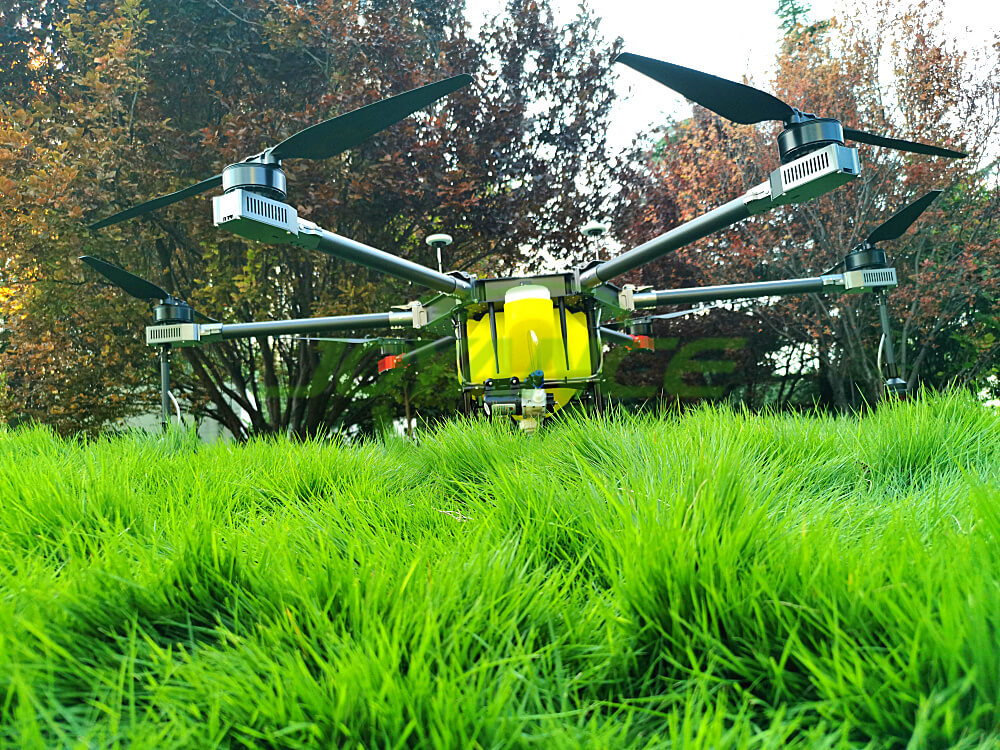

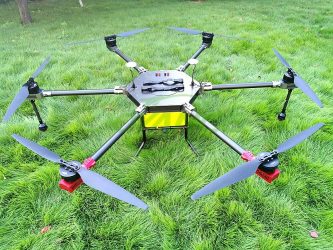

The UAV sprayer drone is the drone made for agriculture use to protect the plants. The sprayer drone is constituted of power system, GPS flight control and spraying system three parts. It uses remote controller or GPS to realize the spraying function, including spraying of liquid pesticides and fertilizers.One unit drone with all the options will be put into one Aluminum packing case;
Model | JT 15L-606 sprayer drone |
Structure | Foldable umbrella |
Frame | 6 axles, 6 propellers |
Material | Aviation aluminum, carbon fiber |
Pesticide tank | 10 L |
Net weight | 13.5 kg |
Take off weight | 31 kg |
Max take off weight | 38 kg |
Drone size(Spread) | W1.8mxL1.8mxH0.48m |
Drone size(Folded | W0.7mxL0.7mxH0.63m |
Flying time | 10~15min |
Flying radius | 0~1000m |
Flight height | 0~30m |
Flying speed | 0~12m/s |
Work temperature | -10~70°C |
Work humidity | 0~90% |
Wind resistance | 10m/s |
Nozzle | 2 pcs centrifugal nozzles |
Spraying width | 6-7m |
Spraying efficiency | 7-8 hectares / hour |
Spraying flow | 2-2.5L/min |
Motor | Brushless, IP 65 |
Propeller | Carbon fiber composite |
Flight control | Joyance K++ |
Remote controller | Joyance VD 32 |
Battery | 6S 17000mah LiPo battery |
Battery quantity | 2pcs |
Hongdu Paper Co., Ltd is here to help with ll kinds of agricultural drone manufacturer; we specialize in providing The drones are widely applied to spray liquid pesticide and fertilizer on vegetables, fruit trees and crops, achieved good effect. It’s very popular in our domestic market.
If you are looking for Wholesale Custom Agricultural Drone Manufacturer For agriculture sprayer the most famous factory for Wholesale CustomAgricultural Drone Manufacturer for agriculture sprayer.
